Cold-forged Electrodes such as CrZrCu Round Caps stand out among our product offerings because of their superior metallurgical properties (high conductivity as well as resistance to deformation) and their uptime longevity without quality dips. Compared to typical Class 2 CuCr, this variant has lower chrome content alongside Zr, and in addition to mitigating the zinc-copper alloying effect on the electrode face, which increases the risk of seizing, it also helps de-adhere the electrode face. The Electrodes are multi-purpose welding tools suited for safe and reliable resistance welding of coated and uncoated steels of light, medium thickness.

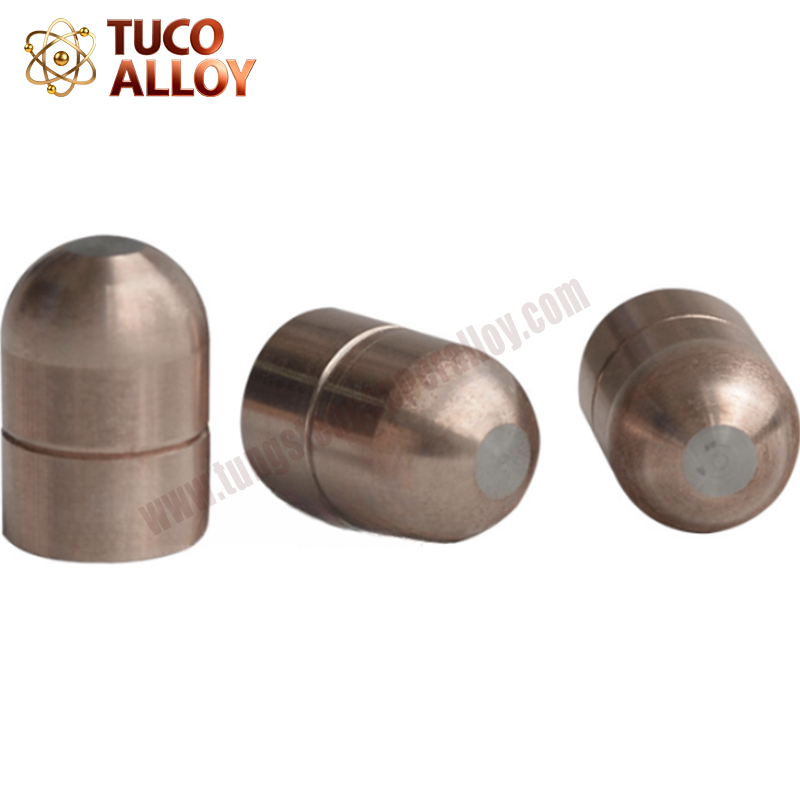

Specifications Of Round Cap CrZrCu Electrode

Size: Customized

Tensile strength: 460~640MPa

Yield strength: 400~570MPa

Elongation: 10~20%

Hardness: 73~90 HRB

Conductivity: 44~50 MS/m
