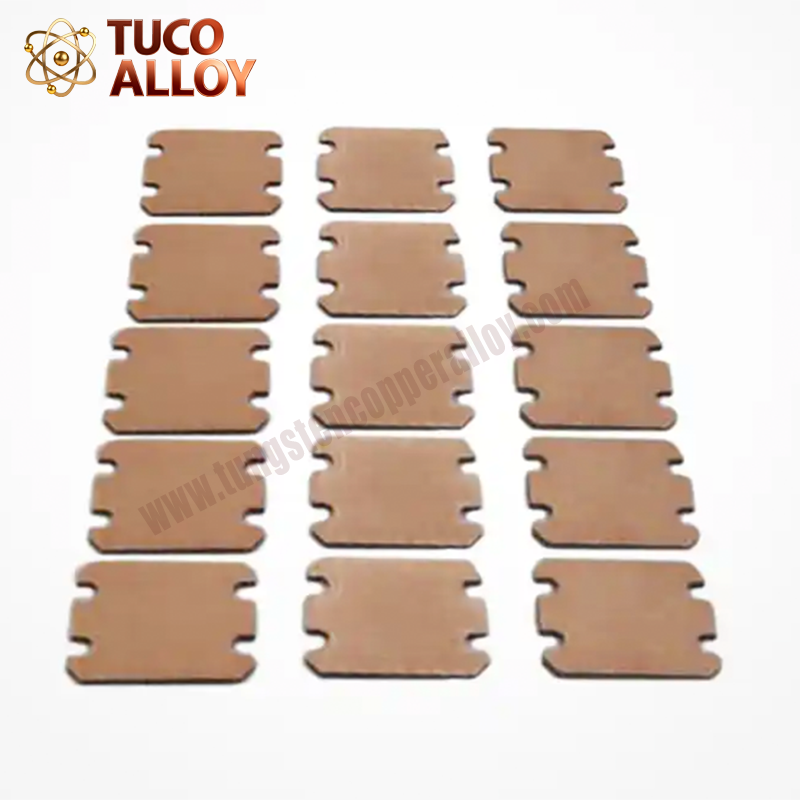

MoCu Alloy Shim
When it comes to applications that require great corrosion resistance, thermal conductivity, and thermal resistance, Molybdenum Copper Alloy shims are used. Electrical, electronic, and industrial applications can all count on Molybdenum Copper Alloy shims. Their unparalleled strength makes them appropriate for applications that prioritise safety and dependability. They prove to be ideal for the electrical, electronic, or industrial sectors.
Advantages of MoCu Alloy Shim
High thermal conductivity since no sintering additives have been used
Excellent hermeticity
Relatively small density
Stampable sheets available (Mo content no more than 75 wt%)
Semi-finished or finished (Ni/Au plated) parts available
Properties of MoCu Alloy Shim
(wt% Mo Cu: balance) | 85% | 80% | 70% | 60% | 50% |
(g/cm3) | 10.0 | 9.9 | 9.8 | 9.6 | 9.5 |
(10-6/K) | 6.8 | 7.2 | 9.1 | 10.3 | 11.5 |
(W/mK) | 165 | 175 | 195 | 215 | 250 |
(J/kgK) | 275 | - | 301 | 310 | 323 |
(MS/m) | 18.5 | 19.8 | 22.3 | 24.8 | 27.3 |
(GPA) | 248 | 241 | 225 | - | 172 |
(MPa) | 1,138 | 1,103 | - | - | - |
(HV 10) | - | - | 170 | - | 150 |
