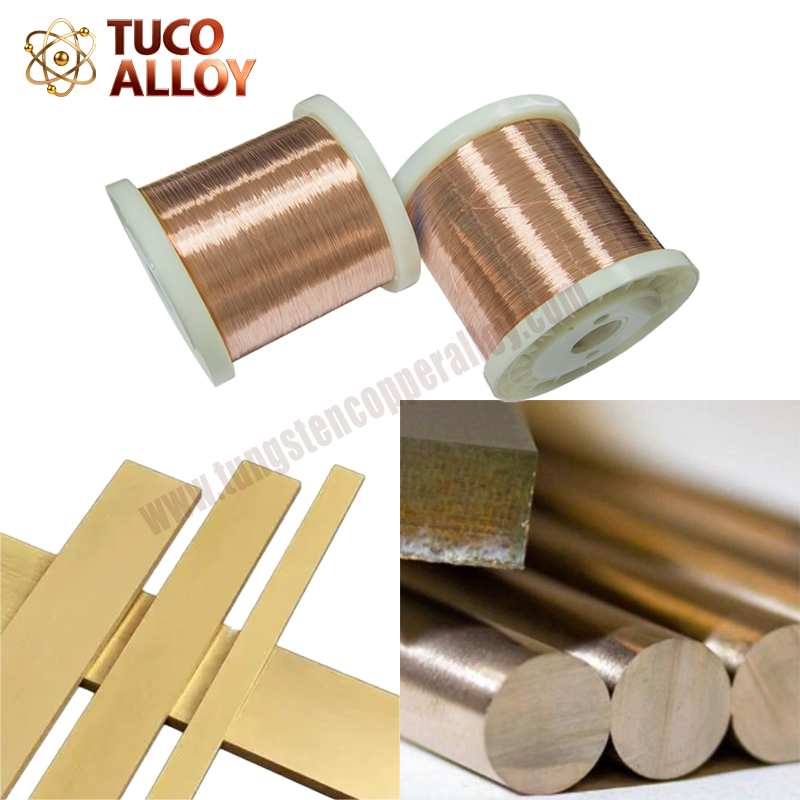

C52100 CuSn8 Alloy
C52100 CuSn8 is a solid solution strengthened copper alloy with 8% tin (bronze). It is therefore the highest alloyed phosphor bronze. This is apparent in the high strength combined with still adequate conductivity.CuSn8 alloy provides better corrosion resistance compared to bronze with lower tin content, combined with higher strength and good slip properties. It is wear-resistant, has excellent spring properties, and good cold forming and soldering properties. CuSn8 is used for springy components and sliding elements when increased strength and wear resistance are required.
Properties Of C52100 CuSn8 Alloy
| Density [g/cm³] | 8.79 |
| Melting point [°C] | 1040 |
| Specific heat cap. at 20°C [kJ/kgK] | 0.377 |
| Electrical cond. [MS/m] | 7.5 |
| Thermal cond. at 20°C [W/mK] | 67 |
| Mod. of elasticity [GPa] | 115 |
| Coef. of therm exp. at 20°C[10-6/K] | 18.5 |
| Tensile strength [MPa] | 385-840 |
| Yield strength [MPa] | 160-725 |
| Elongation [%] | 2-60 |
| Hardness HV | 70-250 |
Fabrication Properties Of C52100 CuSn8 Alloy
| Brazing | Excellent |
| Butt Weld | Excellent |
| Capacity for Being Cold Worked | Good |
| Capacity for Being Hot Formed | Poor |
| Coated Metal Arc Welding | Fair |
| Gas Shielded Arc Welding | Good |
| Machinability rating | 20 |
| Oxyacetylene Welding | Fair |
| Seam Weld | Fair |
| Soldering | Excellent |
| Spot Weld | Good |
