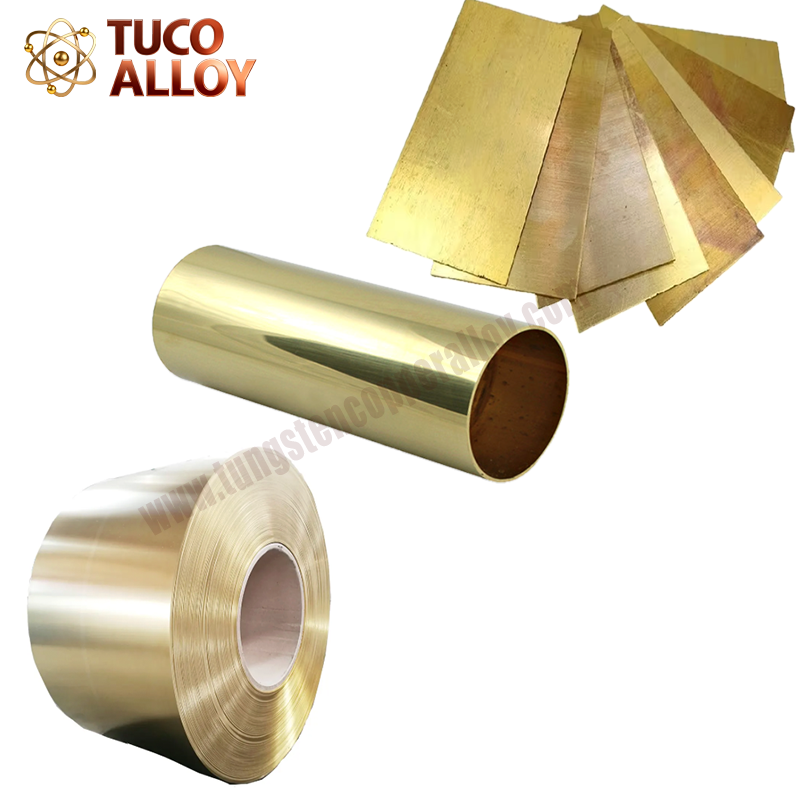

C27200 Copper Alloy
Features Of C27200 Copper Alloy
Outstanding Cold Formability: 98% Yield Rates. Deep drawing, spinning.
Large Strength-Toughness Ratio: 65% shrinking during stretching after heat treatment, with strength increased by 150% during cold working
Improved Resistance to Corrosion: Corrosion over time periods is protected against by surface degradation, resistant to fresh water on the surface, and maintains corrosion passivation
Affordable & Environmentally Friendly: Zinc content reduction, 35% and lead content less than or equal to 0.05% which is expensive.
Crown Universal Decorative: High value, Yellow pure tin classic, Easily fashioned to various surface finishes by various methods.
Physical Properties Of C27200 Copper Alloy
Property | Value | Test Condition |
Density (g/cm³) | 8.45–8.55 | 20°C |
Melting Point (°C) | 900–930 | - |
Electrical Conductivity (%IACS) | 26±2 | Annealed, 20°C |
Thermal Conductivity (W/m·K) | 115±10 | 20°C |
Thermal Expansion Coeff. (×10⁻⁶/K) | 20.5 | 20–250°C |
Mechanical Properties Of C27200 Copper Alloy
Property | Value |
Tensile Strength (MPa) | 290–600 |
Yield Strength (MPa) | 75–550 |
Elongation (%) | ≥5–60 |
Hardness (HV) | 55–200 |
