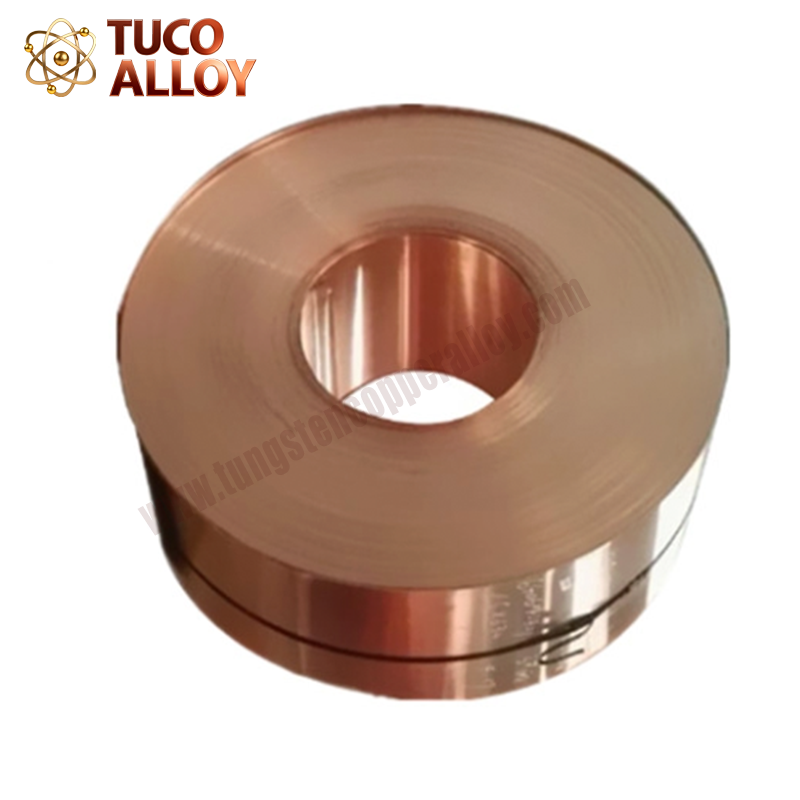

C19005 Copper Alloy Foil
C19005 is an enhanced CuNiSi alloy. It can be hardened through cold working as well as by performing a heat treatment to cause precipitation of NiSi-phases. It has excellent bendability, forming properties, strength, and corrosion resistance. Its NiSi-precipitates endow the alloy with excellent relaxation properties, even up to 150 °C. Its tin coating exhibits superior adhesion even after 3,000 hours at 150 °C. It has good electro-thermal conductivity as well as good weldability, solderability, and brazeability.
Main Applications Of C19005 Copper Alloy Foil
Automotive: switches and relays, contacts, connectors, terminals, and press fits.
Electrical: switches and relays, contacts, connectors, terminals, Press fits, components for the electrical industry, stamped parts, semiconductor components.
Properties Of C19005 Copper Alloy Foil
| Chemical Composition: | Ni:1.5 %/Si: 0.3 %/Sn: 0.1 %/Zn: 0.4 %/Cu: Balance |
| Density | 8.92 g/cm³ |
| Thermal Expansion Coefficient | 16.8 10-6/K |
| Specific Heat Capacity | 0.377 J/(g·K) |
| Thermal Conductivity | 250 W/(m·K) |
| Electrical Conductivity | 33 MS/m |
| Electrical Conductivity IACS | 57 % |
| Thermal Coefficient of Electrical Resistance | 2 10-3/K |
| Modulus of elasticity | 135 GPa |
| Tensile Strength | 360 - 700 MPa |
| Yield Strength min. | 300 - 560MPa |
| Elongation min. | 5% - 14% |
| Hardness HV | 100 - 210 |
